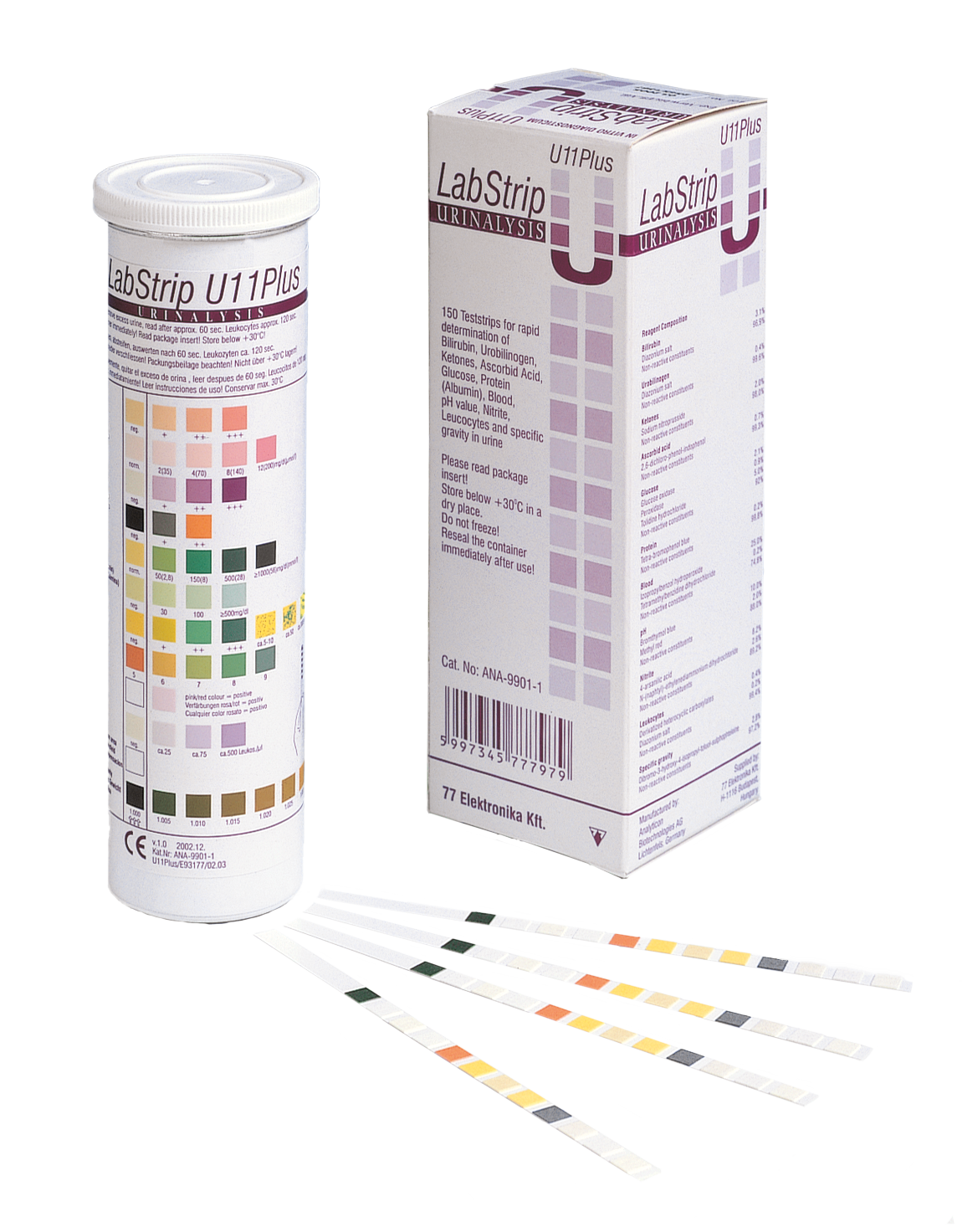

LabStrip U11 Plus (GL)

The LabStrip U11 Plus and LabStrip U11 Plus GL high-grade, multiparameter urinalysis test strips are in vitro diagnostic medical devices for professional laboratory use.



They are designed for semi-quantitative urine analysis from fresh urine. LabStrip U11 Plus and LabStrip U11 Plus GL test strips are intended to be used in screening tests for liver disease, biliary and hepatic obstructions, diabetes, and hemolytic, urological, and nephrological diseases associated with hematuria or hemoglobinuria, diseases of the kidneys and urinary tract, and pathologic shifts in pH, as well as for the investigation of urinary sediment.

Each test strip has 11 measuring zones that contain sensitive reagents.



The color of the test field changes as the result of a chemical reaction after urine contact. This coloration can be detected by 77 Elektronika’s urine analyzers or by visual inspection.



  • Rapid determination of 11 parameters in urine
  • Works with all urine analysers of 77 Elektronika
  • Packed in hand-sized plastic tubes closed with desiccant cap: protect against humidity, good stability
  • Each tube contains 150 strips
  • Shelf life: 24 months



The LabStrip U11 Plus can be used only with:





LabUMat 2 can be operated with the new LabStrip U11 Plus GL urine test strips. The operation of LabStrip U11 Plus and LabStrip U11 Plus GL is based on the same principles, both contain the same reagents in the same composition. The only difference between them is the shape of strips.

Parameters

neg.

+

++

+++

++++



Bilirubin (mg/dl)

neg.

1

3

6



Urobilinogen (mg/dl)

norm

2

4

8

12



Ketones (mg/dl)

neg.

15

50

150



Ascorbic acid (mg/dl)

neg.

20

40



Glucose (mg/dl)

norm

50

150

500

1000



Protein (mg/dl)

neg.

30

100

500



Blood (Ery/ml)

neg.

ca. 5-10

ca. 50

ca. 300



pH

5

6

7

8

9



Nitrite

neg.

pos.



Leukocytes (Leu/ml)

neg.

ca. 25

ca. 75

ca. 500



Specific Gravity

1000

1005

1010

1015

1020

1025

1030

  • LabStrip U11 Plus (GL)_User Manual

    Download

  • LabStrip U11 Plus (GL)_MSDS

    Download

  • LabStrip U11 Plus User Manual

    Download
  • Product description
  • Specification
